Heritage Collection

6” Select Cedar Drop Siding

We all have that favorite old cabin or home permanently etched into our memory that years later turned into a bed and breakfast. That timeless structure just outside shouting distance from town. A simple, conservative pattern often times painted in Victorian white or a soft pastel. Installing one of our sidings from our Heritage Collection can bring you a step closer to reliving those times. When all of your neighbors gathered on the front porch and called you by name. Send us an email to help you move forward with the right siding choice for your project.

– Timeless, conservative look

– Little to moderate shadow lines

– Rough, Smooth or Wirebrushed lines

– Available in White Pine, Cedar, Redwood & Ipe

Pattern Name/Number	Pattern Image	Specie									Nominal Thickness	Nominal Width
		Alaskan Pine		White Pine		Cedar		Redwood		Ipe
Click for pattern sheets	Click to enlarge	Tight Knot	Select	Tight Knot	Select	Tight Knot	Select or CVG	Tight Knot	Select or CVG	Clear		4″	6″	8″	10″	12″

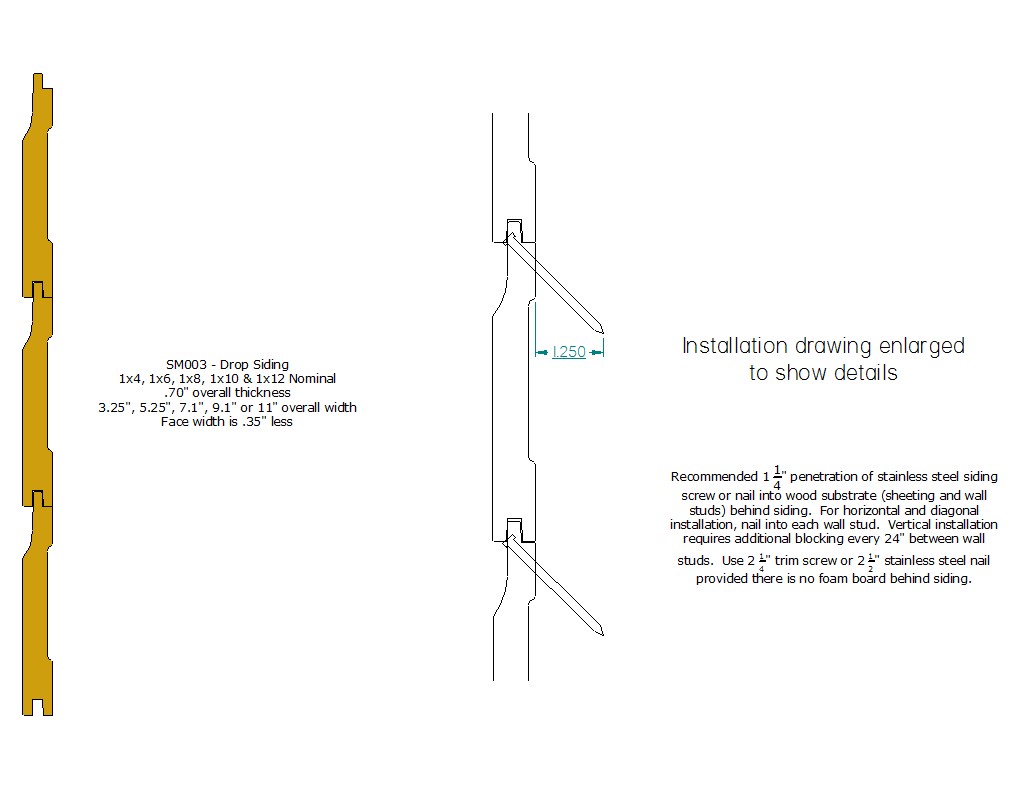

Drop SM003				X	X	X	X	X	X	X	1″	X	X	X	X	X
Shiplap SM002				X	X	X	X	X	X	X	1″	X	X	X	X	X
Square Edge T&G PS003				X	X	X	X	X	X	X	1″	X	X	X	X	X

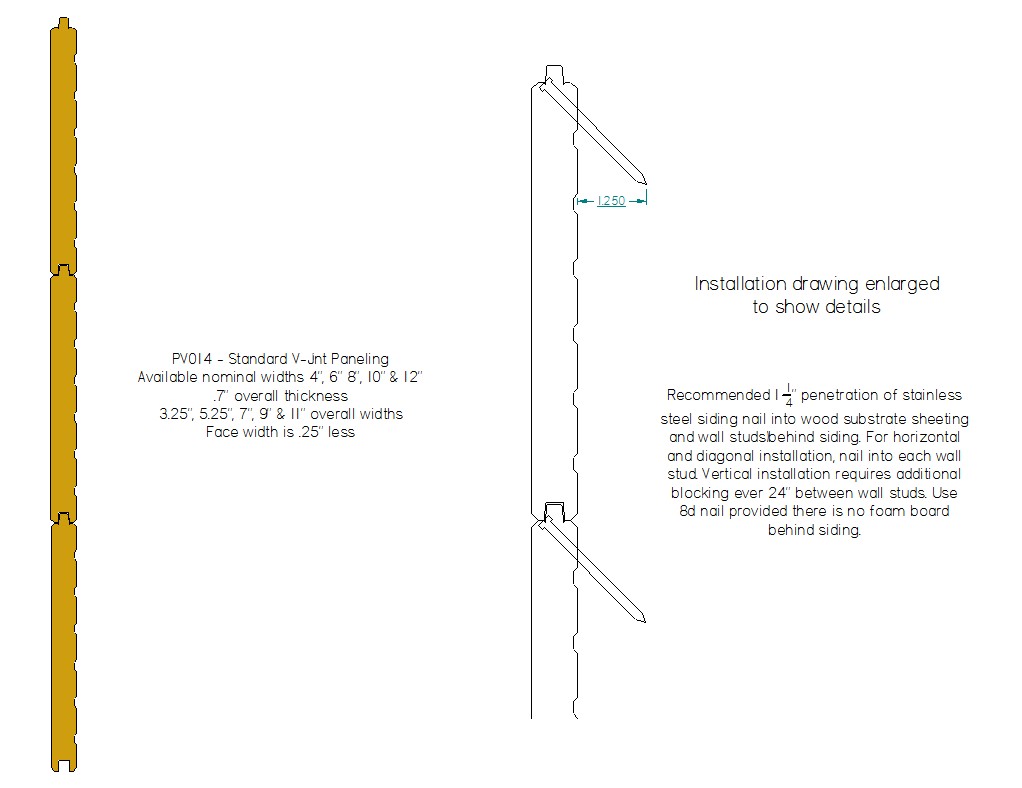

Standard V-Joint T&G – PV014				X	X	X	X	X	X	X	1″	X	X	X	X	X

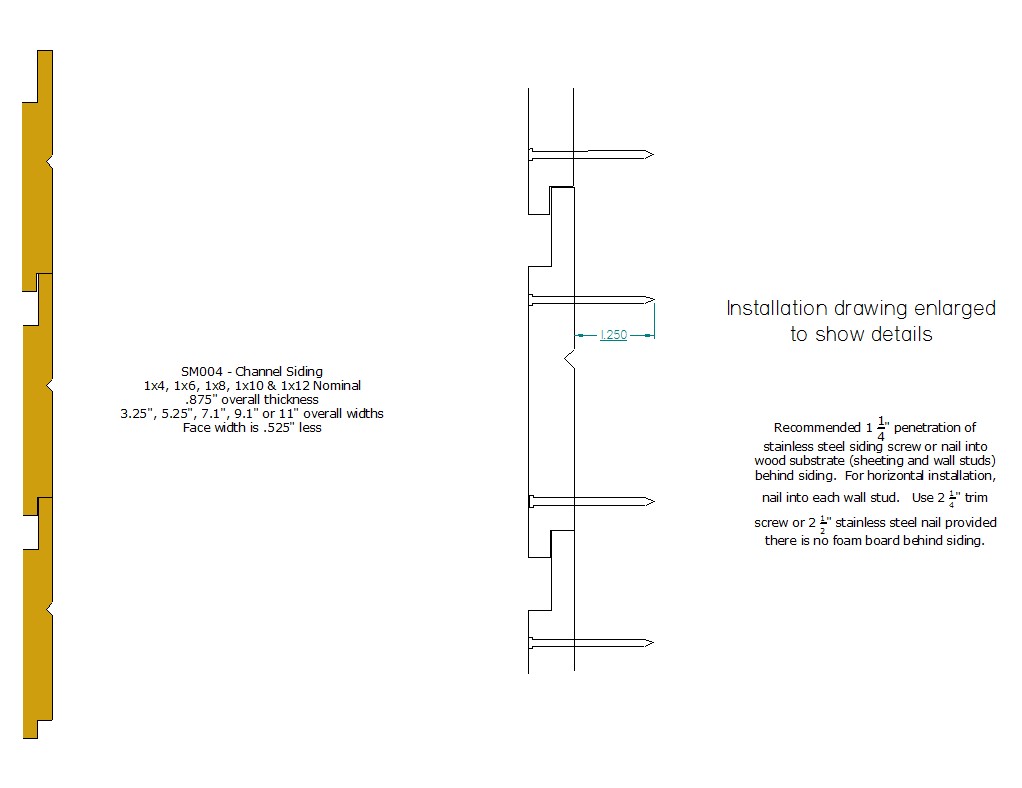

Channel SM004				X	X	X	X	X	X	X	1″	X	X	X	X	X
Deep Vee SM017				X	X	X	X	X	X	X	1″	X	X	X	X	X

Grades

The above photos are just one example of the noted grade & specie

Clear All Heart Vertical Grain or CAH-VG (Redwood only)

• 90% of boards have no knots, 10% of boards can have a small knot 1/4” diameter or less for every 8’.
• Vertical grain orientation.
• Occasional end split limited to 6” in length.
• Wane limited to 1/8” x 15% of length on back face for 1” thickness, 1/4” x 15% of length on back face for 5/4” & 2” thicknesses.
• Back face can have some skip dressing/torn grain or voids.
• Natural wood characteristics allowed (burled grain and color variation)
• Will contain only heart colors.
• Great choice when looking for a high quality appearance.

Clear All Heart Mixed Grain or CAH-MG (Redwood only)

• 90% of boards have no knots, 10% of boards can have a small knot 1/4” diameter or less for every 8’.
• Flat grain orientation.
• Occasional end split limited to 6” in length.
• Wane limited to 1/8” x 15% of length on back face for 1” thickness, 1/4” x 15% of length on back face for 5/4” & 2” thicknesses.
• Back face can have some skip dressing/torn grain or voids.
• Natural wood characteristics allowed (burled grain and color variation)
• Will contain only heart colors.
• Great choice when looking for a high quality appearance.

Clear Vertical Grain or CVG (Cedar, Douglas Fir, & Hemlock only)

• 90% of boards have no knots, 10% of boards can have a small knot 1/4” diameter or less for every 8’.
• Vertical grain orientation.
• Occasional end split limited to 6” in length.
• Wane limited to 1/8” x 15% of length on back face for 1” thickness, 1/4” x 15% of length on back face for 5/4” & 2” thicknesses.
• Back face can have some skip dressing/torn grain or voids.
• Natural wood characteristics allowed (burled grain and color variation)
• Will contain both heart and sap colors, no blue sap stain.
• Great choice when looking for a high quality appearance.

Clear

• 90% of boards have no knots, 10% of boards can have a small knot 1/4” diameter or less for every 8’.
• Flat grain orientation.
• Occasional end split limited to 6” in length.
• Wane limited to 1/8” x 15% of length on back face for 1” thickness, 1/4” x 15% of length on back face for 5/4″ & 2″ thicknesses.
• Back face can have some skip dressing/torn grain or voids.
• Natural wood characteristics allowed (burled grain and color variation)
• Will contain both heart and sap colors, no blue sap stain.
• Great choice when looking for a high quality appearance.
• Cedar, Douglas Fir, Hemlock & Redwood can also be available in vertical grain.

Select

• 70% of boards have no knots, 30% of boards can have a knot up to ¼” diameter every 1’ or up to 1-1/2” diameter for every 4’.
• Flat grain orientation.
• Occasional end split limited to 6” in length.
• Wane limited to 1/8” x 15% of length on back face for 1” thickness, 1/4” x 15% of length on back face for 5/4” & 2” thicknesses.
• Back face can have some skip dressing/torn grain or voids.
• Natural wood characteristics allowed (gum pocket, burled grain and color variation)
• Will contain both heart and sap colors, no blue sap stain.
• Redwood also available in all heart color.
• Great choice for a value priced high quality grade with few knots.

Tight Knot

• Knots are sound and tight.
• No size or quantity limitation on knots, can be star checked with voids up to 1/8” wide x 1/4” deep.
• Can have black ring knot on face, but knot must be ingrown on back face.
• Flat grain orientation.
• Occasional end split limited to 6” in length and slight surface checking is allowed.
• Wane limited to 1/8” x 15% of length on back face for 1” thickness, 1/4” x 15% of length on back face for 5/4” & 2” thicknesses.
• Back face can have some skip dressing/torn grain or voids.
• Natural wood characteristics allowed (peck, ingrown bark, birdseye, gum pocket, burled grain and color variation)
• Will contain both heart and sap colors.
• Pine is limited to 10% blue sap stain, no open pitch pockets, but may have up to 10% sappy grain.
• Great choice when a knotty appearance is required.
